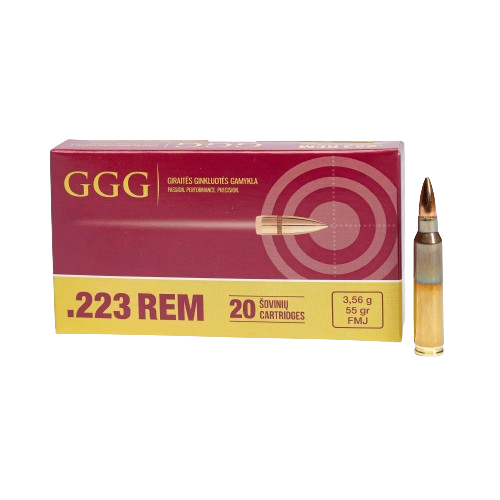

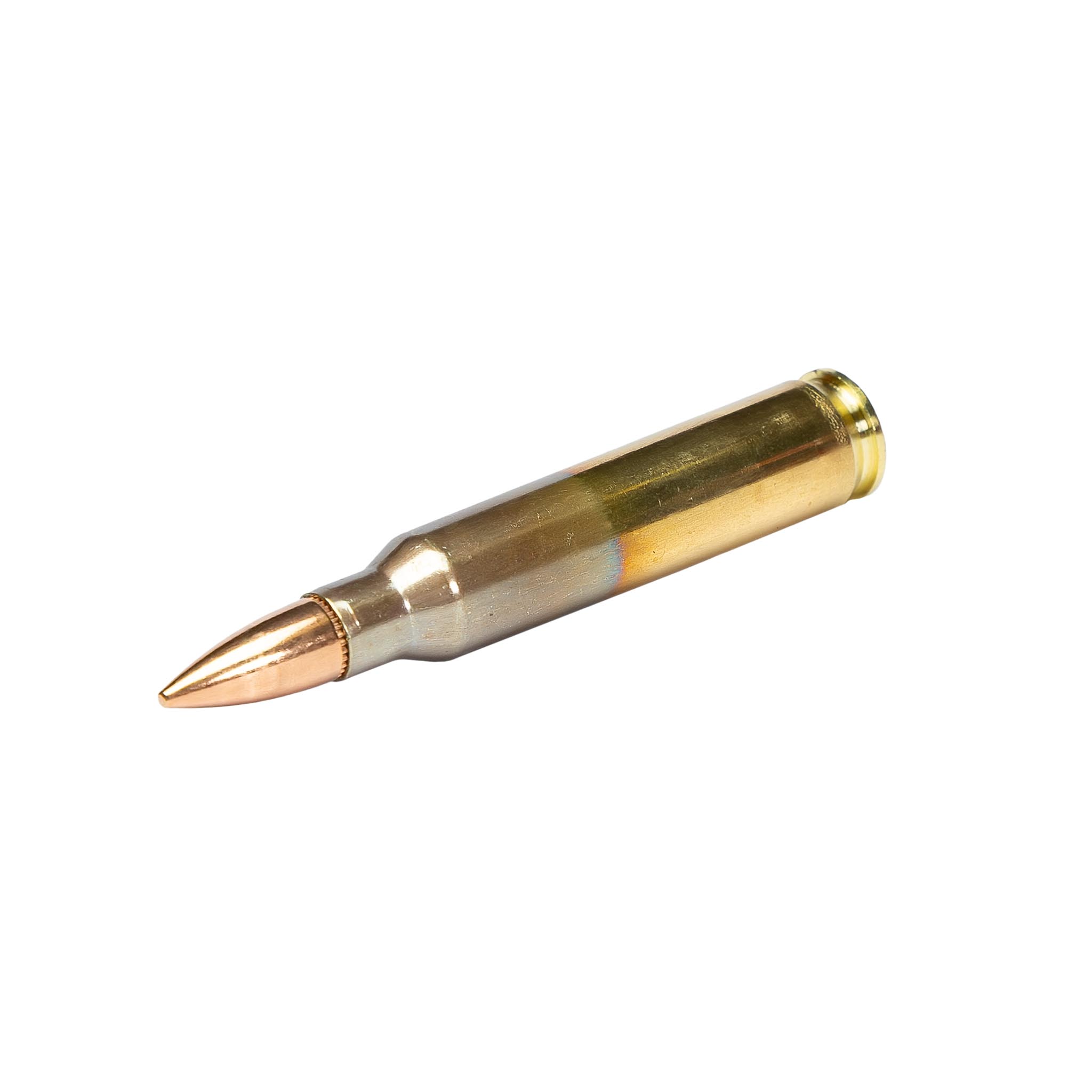

GGG .223 REM DESIGN GPR11
Back
.jpg)
Technical specification
Caliber | .223 REM | |
Bullet type | tipas | FMJ |
|---|---|---|
Bullet weight | g gr | 3,56 55 |
Total length | mm | 57,40 (-0,70) |
Bullet extraction | N | ≥50 |
Bullet material | Jacket – CuZn10; Core – lead-antimony (2,2%) | |
Case material | CuZn30 | |
Case length | mm | 44,70 (-0,25) |
Propellant | type | Double base |
Total weight | g | 11,55±0,45 |
Primer | type | BOXER |
Ballistic Properties
PARAMETER | BULLET MEAN VELOCITY m/s |
|---|---|
Bullet mean velocity, m/s, barrel length 600 mm, twist 9" (12") | 1015 ± 15 |
Velocity maximum standard deviation | 12,0 |
PARAMETERS | RANGE | |||||
|---|---|---|---|---|---|---|
0 | 100 | 200 | 300 | 400 | 500 | |
Velocity (m/s) | 1015 | 890 | 775 | 670 | 575 | 485 |
Bullet path (cm) | - | 0 | -12 | -41 | -92 | -173 |
Energy (J) | 1835 | 1410 | 1075 | 800 | 585 | 425 |
Ballistic coefficient | 0.272 | |||||

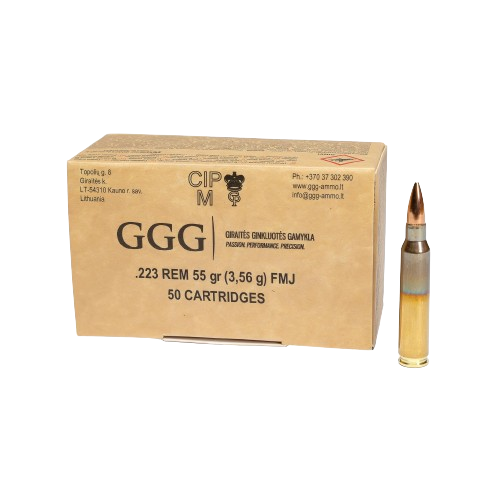

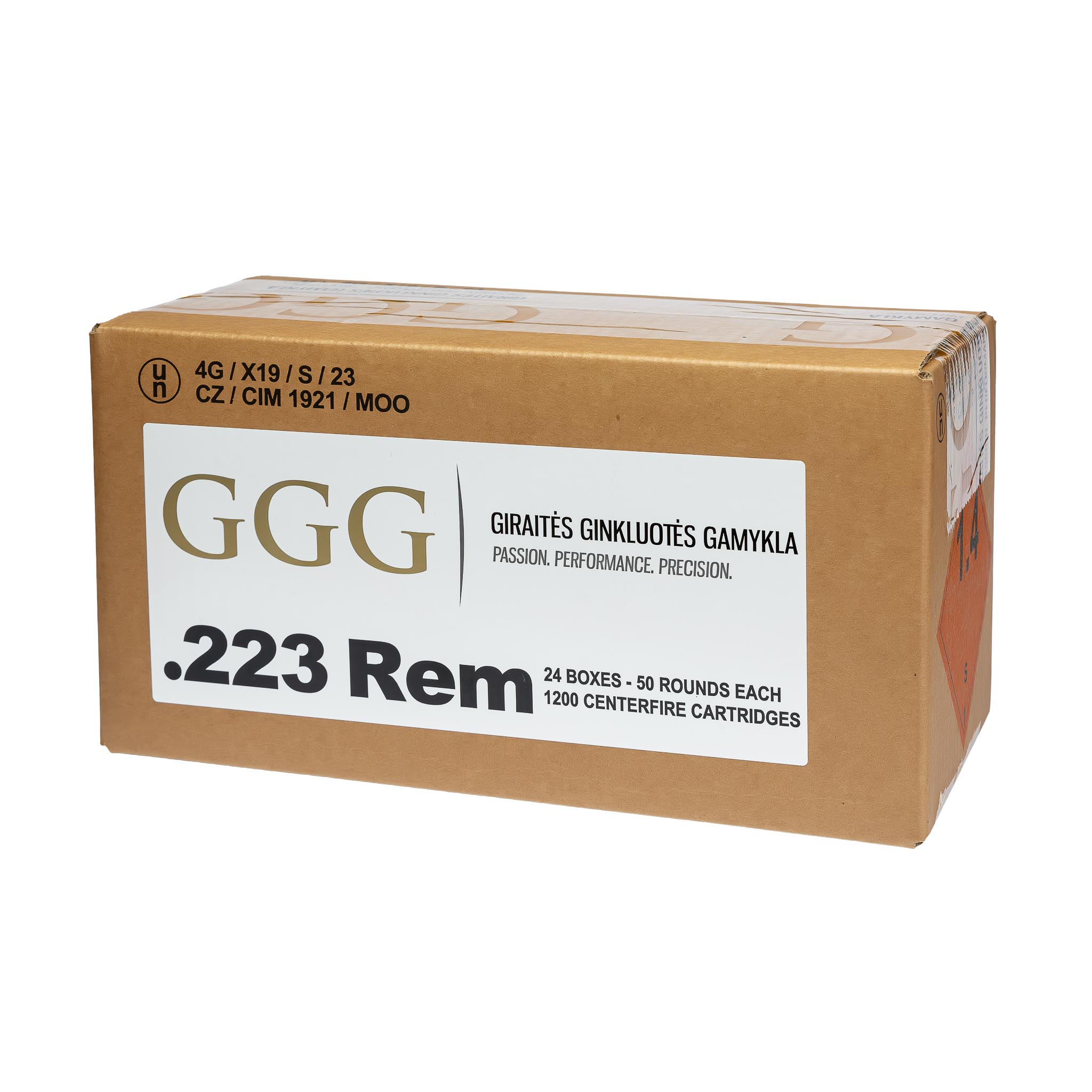

More information about cartridge marking and packaging options
