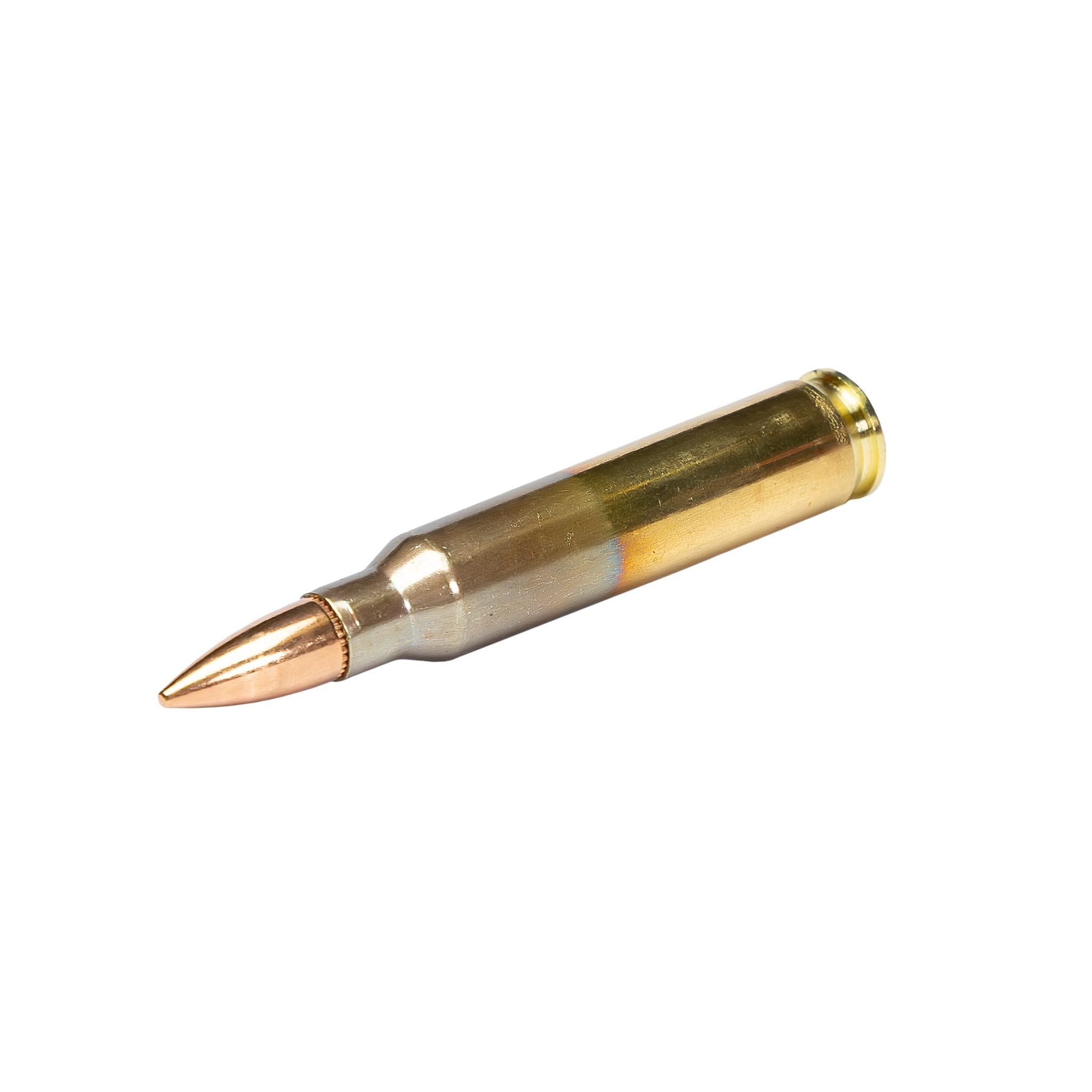

GGG .223 REM DESIGN GPR12
Back
.jpg)
Technical specification
Caliber | .223 REM | |
Bullet type | tipas | FMJ |
|---|---|---|
Bullet weight | g gr | 4,00 62 |
Total length | mm | 57,40 (-0,40) |
Bullet extraction | N | ≥50 |
Bullet material | Jacket – CuZn10; Core – lead-antimony (2,5%) | |
Case material | CuZn30 | |
Case length | mm | 44,70 (-0,25) |
Propellant | type | Double base |
Total weight | g | 11,85±0,45 |
Primer | type | BOXER |
Ballistic Properties
PARAMETER | BULLET MEAN VELOCITY V0, m/s |
|---|---|
Bullet mean velocity, m/s, barrel length 508 mm, twist 7" | 950 ± 15 |
Velocity maximum standard deviation | 12,0 |
PARAMETERS | RANGE | |||||
|---|---|---|---|---|---|---|
0 | 100 | 200 | 300 | 400 | 500 | |
Velocity (m/s) | 950 | 840 | 740 | 650 | 560 | 485 |
Bullet path (cm) | - | 0 | -14 | -46 | -102 | -189 |
Energy (J) | 1800 | 1415 | 1095 | 840 | 630 | 465 |
Ballistic coefficient | 0.298 | |||||
