GGG .223 REM DESIGN GPR13
Back
Technical specification
Caliber | .223 REM | |
Bullet type | type | HPBT |
|---|---|---|
Bullet weight | g gr | 4,47 69 |
Total length | mm | 57,40 (-0,70) |
Bullet extraction | N | ≥50 |
Bullet material | Jacket – CuZn5; Core – lead antimony (1,5%) | |
Case material | CuZn30 | |
Case length | mm | 44,70 (-0,25) |
Propellant | type | Double base |
Total weight | g | 12,3±0,45 |
Primer | type | BOXER |
Ballistic Properties
PARAMETER | BULLET MEAN VELOCITY V0, m/s |
|---|---|
Bullet mean velocity, m/s, barrel lenght 600 mm, twist 9" (12") | 900 ± 7 |
Velocity maximum standard deviation | 7,2 |
PARAMETERS | RANGE | |||||
|---|---|---|---|---|---|---|
0 | 100 | 200 | 300 | 400 | 500 | |
Velocity (m/s) | 900 | 795 | 700 | 615 | 535 | 465 |
Bullet path (cm) | - | 0 | -16 | -51 | -113 | -210 |
Energy (J) | 1810 | 1420 | 1100 | 845 | 640 | 480 |
Ballistic coefficient | 0.301 | |||||

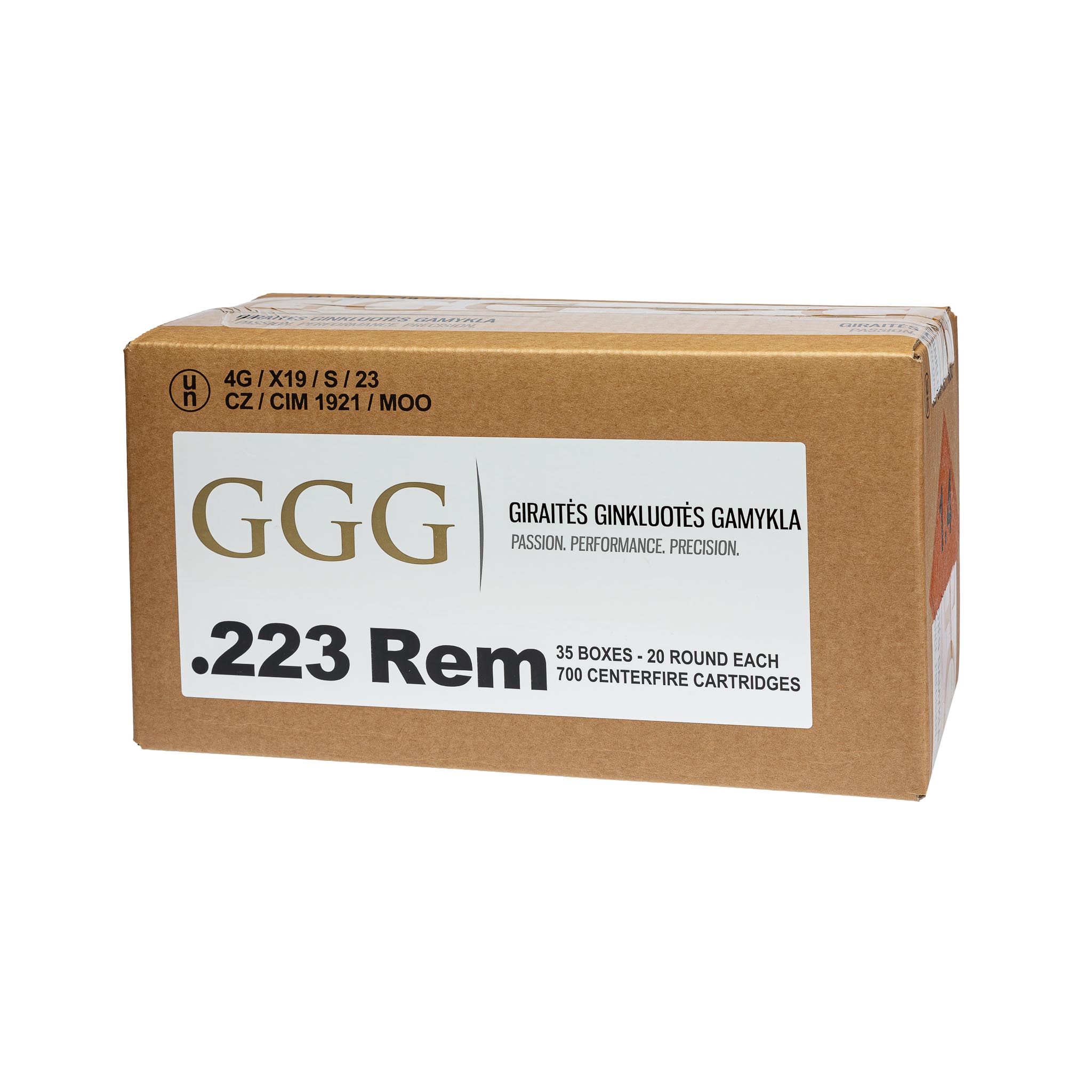

More information about cartridge marking and packaging options
