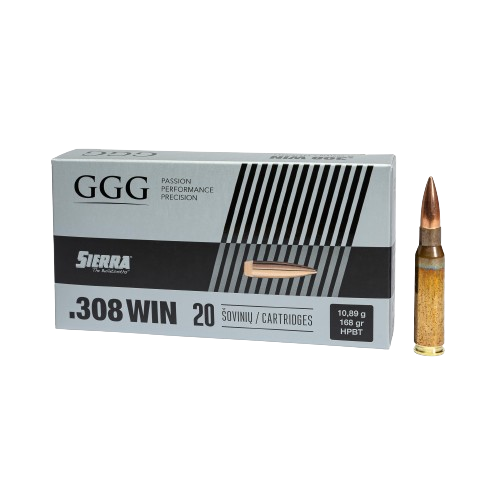

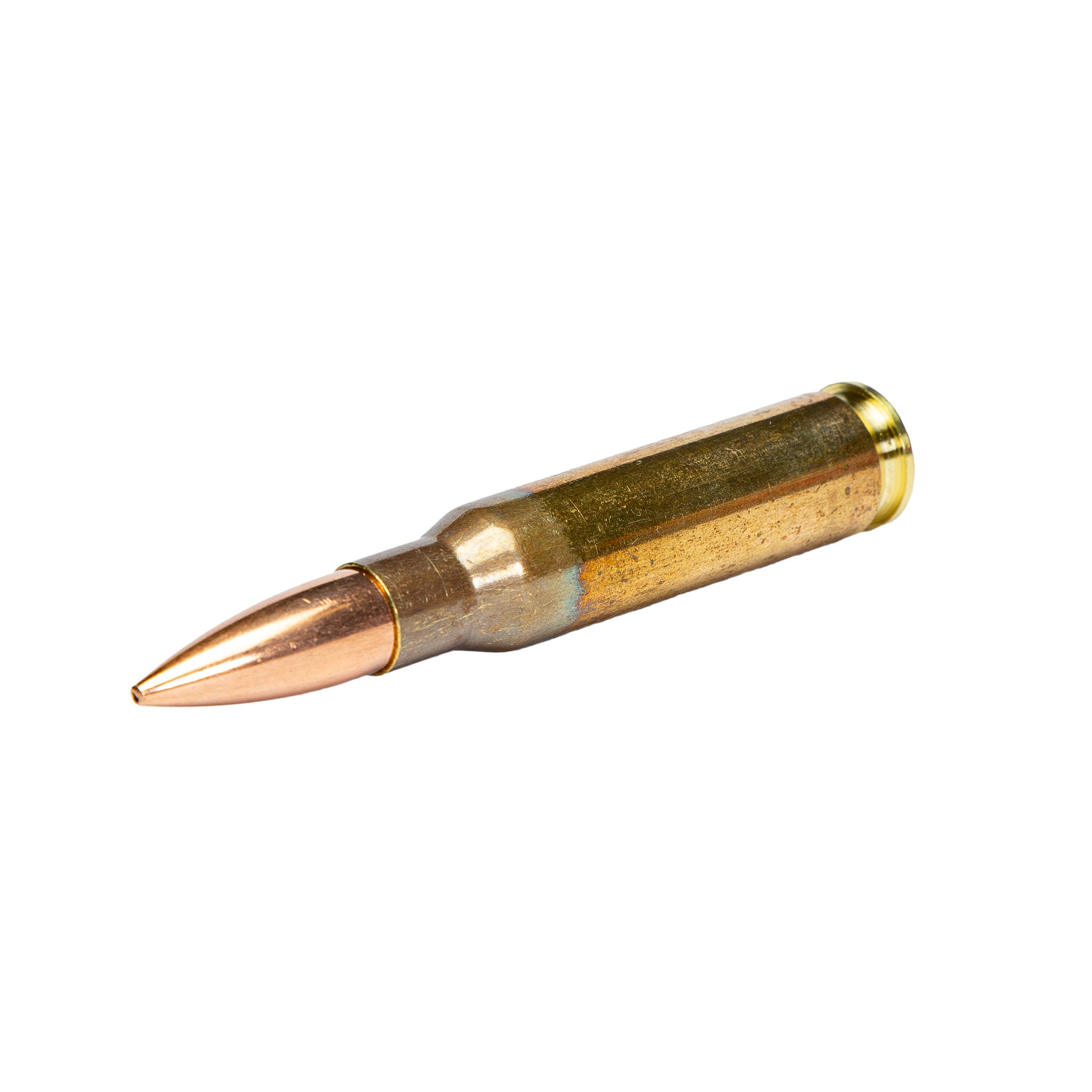

GGG .308 WIN DESIGN GPX13

Back

Technical specification

Caliber

.308 WIN

Bullet type

type

HPBT

Bullet weight

g

gr

10,89

168

Total length

mm

71,12 (-0,40)

Bullet extraction

N

≥50

Bullet material

Jacket – CuZn5; Core - lead antimony (3%)

Case material

CuZn30

Case length

mm

51,18 (-0,38)

Propellant

type

Double base

Total weight

g

25,14±1,00

Primer

type

BOXER
Percussion, non corrosive, non mercuric

Ballistic Properties

Bullet average velocity values. shooting from C.I.P. testing barrel

PARAMETER

BULLET MEAN VELOCITY V0, m/s

Bullet mean velocity, m/s barrel length 600 mm, twist 11“

805 ± 7

Velocity maximum standard deviation

7,2

PARAMETERS

RANGE

0

100

200

300

400

500

Velocity (m/s)

805

740

675

615

555

500

Bullet path (cm)

-

0

-18

-58

-123

-221

Energy (J)

3525

2975

2485

2055

1675

1355

Ballistic coefficient

0.462

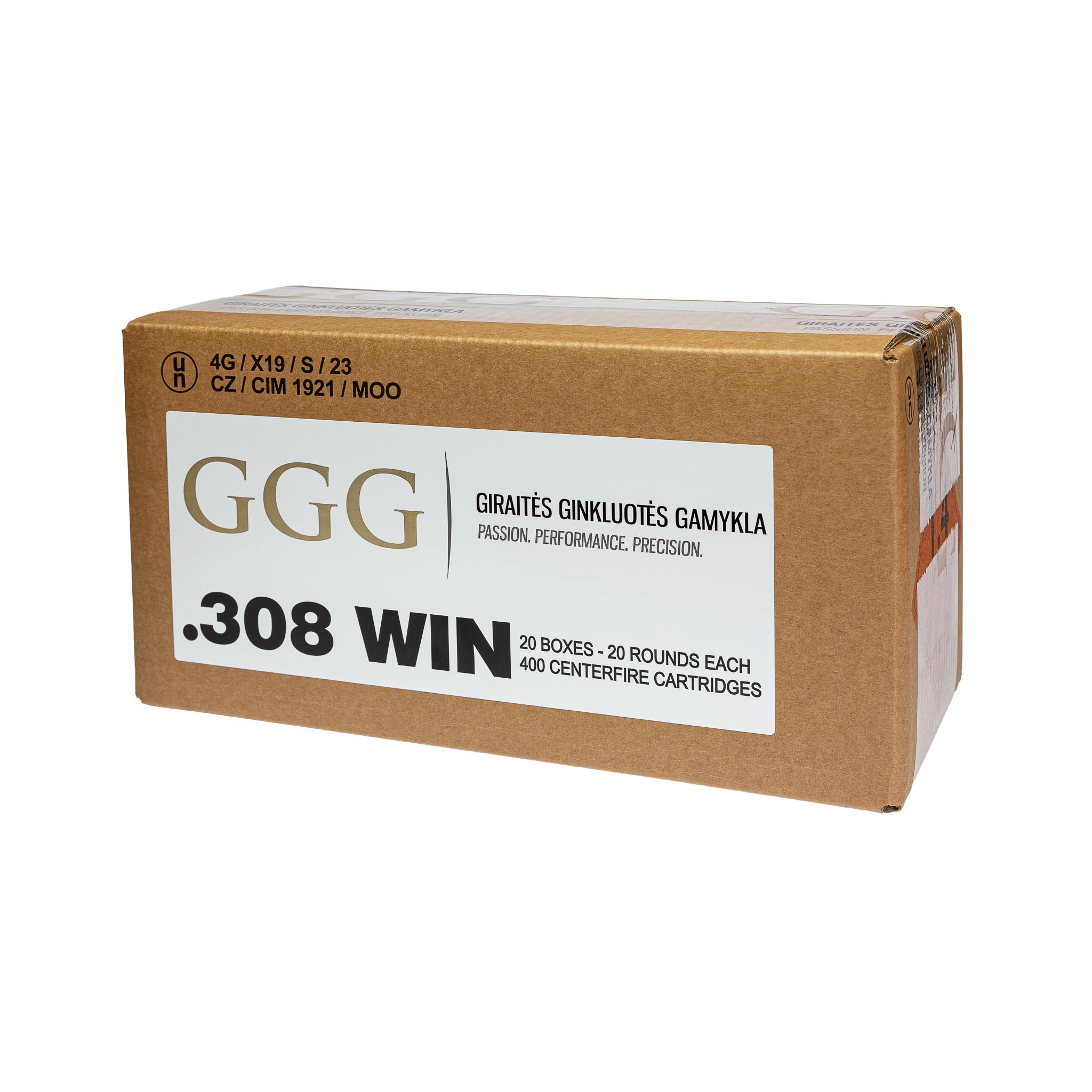

More information about cartridge marking and packaging options
